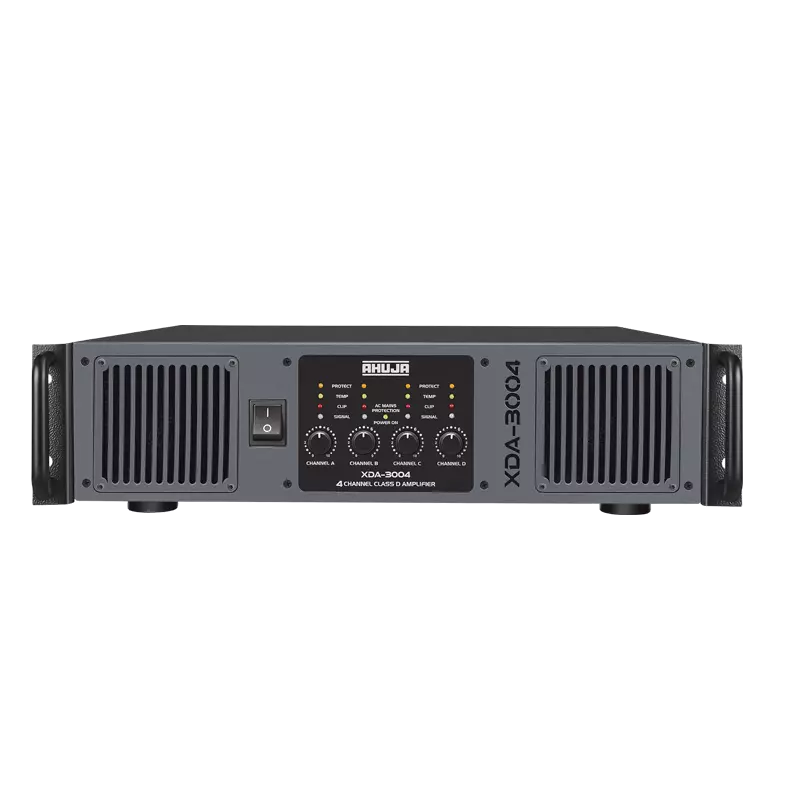

Power Amplifier Ahuja XDA- 3004
Ahuja XDA- 3004
Dual Channel Power Amplifiers
4× 1200 WATTS
₹60,900.00
Share :
Product Details
QUAD CHANNEL CLASS D POWER AMPLIFIERS
- Four Channel Class D Power Amplifier.
- 1200 Watts rated output from each channel .
- Three selectable modes of operation ie., Individual, Dual and ALL.
- Built-in Limiter ON/OFF circuit.
- Toroidal Transformer power supply.
- Two selectable input sensitivities.
- Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Overvoltage & Clip Monitoring.
- Rack mountable in 3U Size.
- BIS approved.
Specifications
All
- Continuous Rated Power Stereo/Mono:8Ω : 700W + 700W + 700W + 700W RMS | 4Ω : 1200W + 1200W + 1200W + 1200W RMS
- THD + N:0.1%
- Frequency Response (-1dB):20-20000Hz
- Power Bandwidth (0.5% THD):20-20000Hz
- Input Sensitivity:0dBu (775mV) & 4dBu (1.23V) (Selectable)
- Input Impedance:10k Unbalanced | 20k Balanced
- Signal To Noise Ratio:100dB
- Channel Separation:65dB at 1kHz
- Damping Factor (8W ):1000
- Slew Rate:20V/µs
- Protections:Temperature | DC | RFI | Short Circuit | Overload | Overvoltage | Built-in Limiter (ON/OFF) AC: Circuit Protector 20A | ± DC: Fuse 2×12A (T 12A L) for each channel
- Input Connectors:4×XLR | Stereo Phone Jack 6.3mm
- Output Connectors:Speakon 4-Way for each channel
- Cooling:4 × Variable Speed DC Fan with Temperature Sensing
- Front Panel Controls:4×41 Step Level Attenuators
- Indicators:Power ON/AC Mains Protection | Signal | Clip | Temperature | Protect (Ch. A | B | C & D)
- Power Consumption (Rated):5620W | 6460va @ 220-240V ~ 50/60Hz
