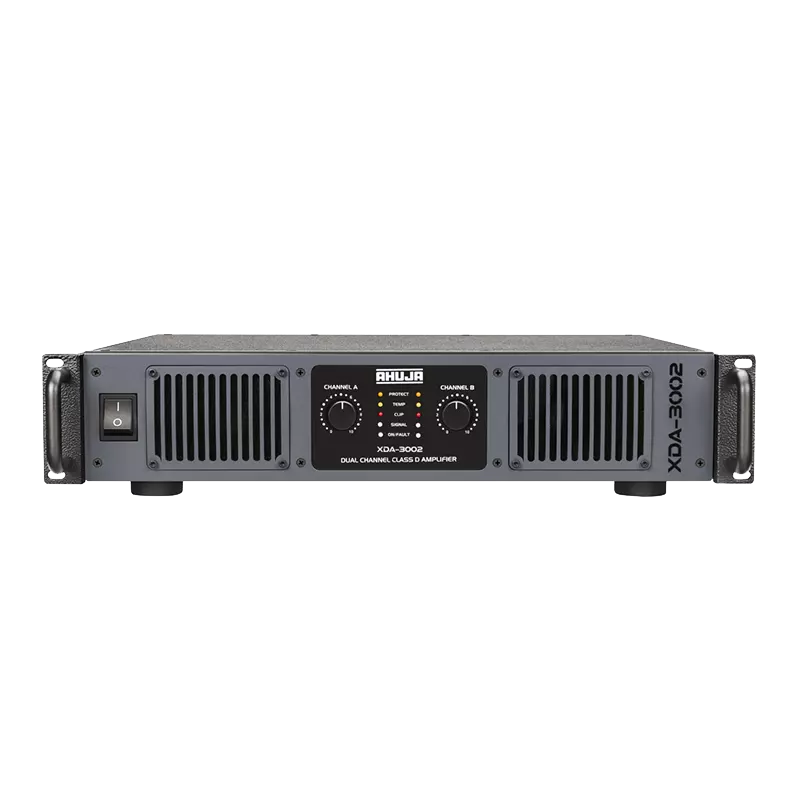

Power Amplifier Ahuja XDA- 3002
Ahuja XDA- 3002
Dual Channel Power Amplifiers
1200+1200 WATTS
₹40,400.00
Share :
Product Details
Dual Channel Class D Power Amplifier
- Dual Channel Class D Power Amplifier.
- 1200 + 1200 Watts rated output.
- 80Hz/120Hz Low Pass Filter.
- Built-in Limiter ON/OFF circuit.
- Toroidal Transformer power supply.
- Two selectable input sensitivities.
- Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Over voltage & Clip Monitoring.
- Compact 2U Size.
- BIS approved.
Specifications
All
- Continuous Rated Power Stereo/Mono:8Ω : 700W + 700W RMS | 4Ω : 1200W + 1200W RMS
- THD + N:0.1%
- Frequency Response (-1dB):20-20000Hz
- Low Pass Filter:80/120Hz @ 24dB per octave
- Power Bandwidth (0.5% THD):20-20000Hz
- Input Sensitivity:0dBu (775mV) & 4dBu (1.23V) (Selectable)
- Input Impedance:10k Unbalanced | 20k Balanced
- Signal To Noise Ratio:100dB
- Channel Separation:65dB at 1kHz
- Damping Factor (8W ):1000
- Slew Rate:20V/µs
- Protections:Temperature | DC | RFI | Short Circuit | Overload | Overvoltage | Built-in Limiter (ON/OFF) | AC: Circuit Protector 16A | ± DC: Fuse 2×16A (T 16A L)
- Input Connectors:2×XLR | Stereo Phone Jack 6.3mm
- Output Connectors:Speakon 4-Way and heavy duty Binding Post for each channel
- Cooling:2 × Variable Speed DC Fan with Temperature Sensing
- Front Panel Controls:2×41 Step Level Attenuators
- Indicators:Power ON/FAULT | Signal | Clip | Temperature | Protect (Ch. A & B)
- Power Consumption (Rated):2800VA @ 220-240V ~ 50/60Hz
