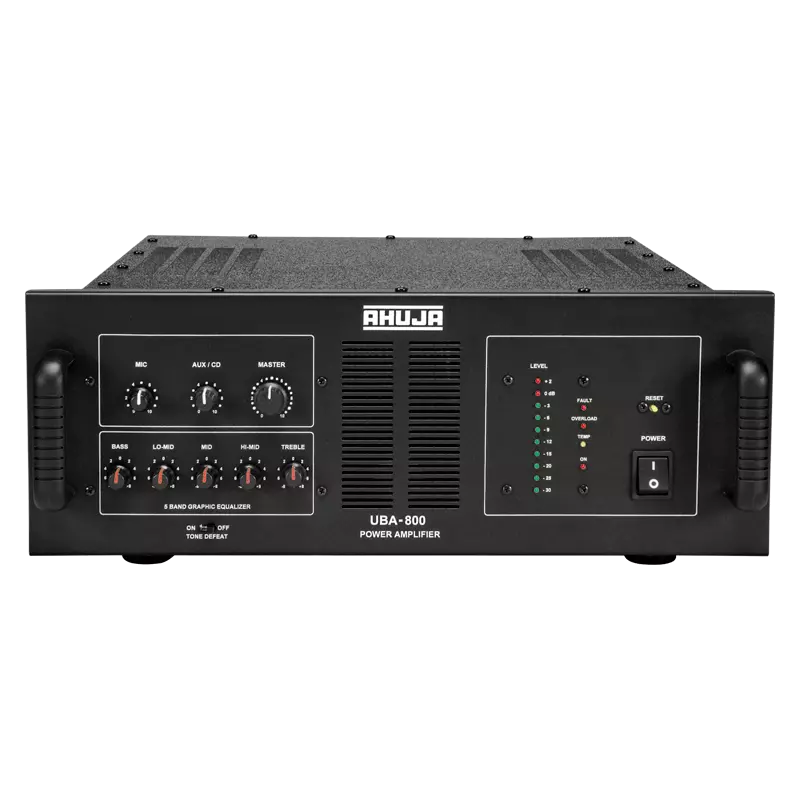

Power Amplifier Ahuja UBA-800
Ahuja UBA-800
DJ & PA POWER AMPLIFIERS
800 WATTS
₹30,200.00
Share :
Product Details
- Designed for use in a wide variety of PA applications and DJ performances.
- UBA-800 is a 800 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
- The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
- Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
- Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
- The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
- Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
- 2Ω speaker matching provided in addition to 4 & 8Ω.
Specifications
All
- Protections:2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains| Protected against high AC mains voltage| overload & temperature
- Power Output:1150W RMS Max.| 800W RMS at 10%THD| 770W RMS at 5% THD 725W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:1 × Mic 1mV / 4.7kΩ| 1 × Aux 100mV / 470kΩ| 1 × Aux 250mV / 20kΩ| 1 × CD 250mV / 20kΩ| 1 × Line 1V / 10kΩ
- Frequency Response:50Hz–18000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass (100Hz) : ± 8dB| Lo-Mid (315Hz) : ± 8dB| Mid (1kHz) : ± 8dB| Hi-Mid (3.1kHz) : ± 8dB| Treble (10kHz) : ± 8dB
- Outputs:Line L/R 1V/1kΩ
- Speaker Outputs:2Ω| 4Ω & 8Ω
- Power Supply:AC: 220-240V 50/60Hz
- Power Consumption:1500 VA
