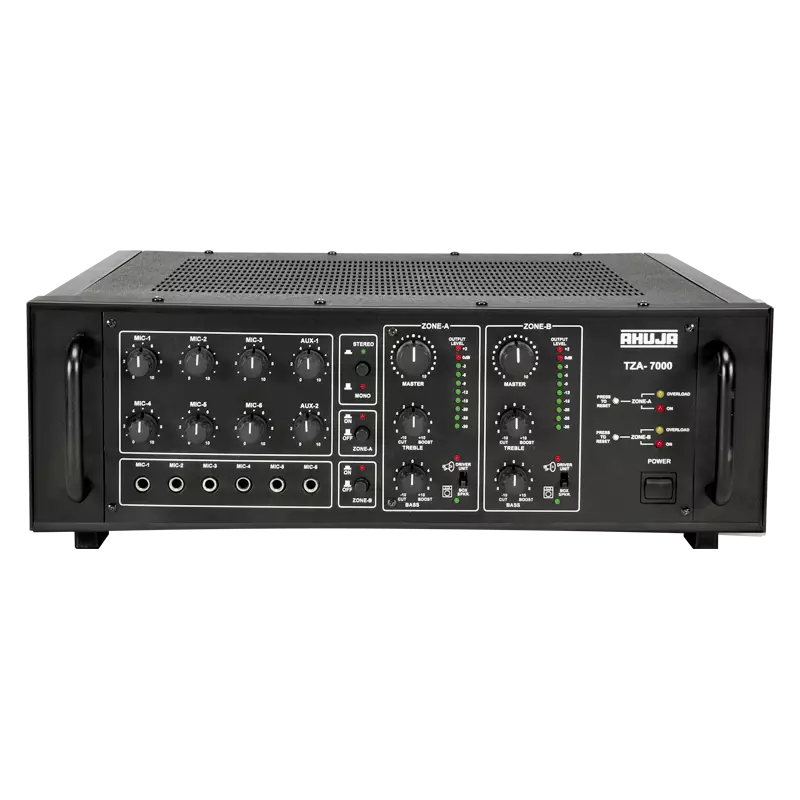

Mixer Amplifier Ahuja TZA- 7000
Ahuja TZA- 7000
2 ZONE PA MIXER AMPLIFIERS
700 WATTS
₹41,500.00
Share :
Product Details
- Ahuja model TZA-7000 is rugged, reliable, cost-effective 700 watts Two Zone Amplifier. TZA-7000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
- 6 Mic & 2 Aux Inputs.
- ‘Stereo’ Music Operation for DJ programmes.
- Facilitates connection and operation of two
- separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
Specifications
All
- Power Output:500W + 500W Max. | 350W + 350W RMS at 10% THD | 300W + 300 RMS at 5% THD | 280W + 280W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:Mono 6 × Mic 0.6mV/4.7kΩ | 2 × Aux 100mV/470kΩ | Stereo L/R 200mV/100kΩ | Line L/R 1V/50kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Output:Preamp 200mV/600Ω | Line 1V/1kΩ
- Speaker Output:4Ω | 8Ω | 70V & 100V for each zone
- Power Supply:AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
- Power Consumption:AC: 1100VA DC: 13A
