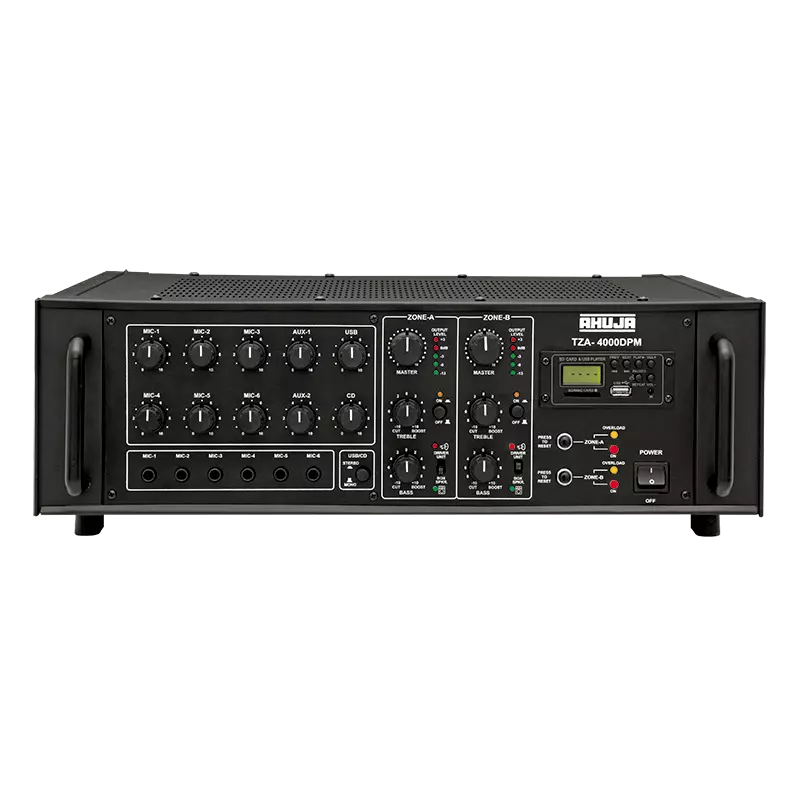

Mixer Amplifier Ahuja TZA- 4000DPM
Ahuja TZA- 4000DPM
2 ZONE PA MIXER AMPLIFIERS
400 WATTS WITH BUILT-IN DIGITAL PLAYER
₹32,600.00
Share :
Product Details
- 6 Mic, 2 Aux Inputs and CD/Stereo input (L&R).
- Built-in MP3 player with remote control and LCD display for USB, SD/MMC card reader.
- Stereo/Mono switch to change ambience of MP3 music player and CD/Stereo music for DJ programmes.
- Separate USB level control provided.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications
All
- Power Output:300W + 300W Max. | 200W + 200W RMS at 10% THD | 180W + 180W RMS at 5% THD | 165W + 165W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:Mic/Aux 6 × Mic 0.6mV/4.7kΩ | 2 × Aux 100mV/470kΩ | Stereo Music Mode: L/R 200mV/100kΩ | Line L/R 1V/20kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Output:Preamp 200mV/600Ω | Line 1V/1kΩ
- Speaker Output:4Ω | 8Ω | 70V & 100V for each zone
- Power Supply:AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
- Power Consumption:AC: 700VA DC: 9A
- Digital Player:MP3 Player with USB | SD and MMC Card Reader
