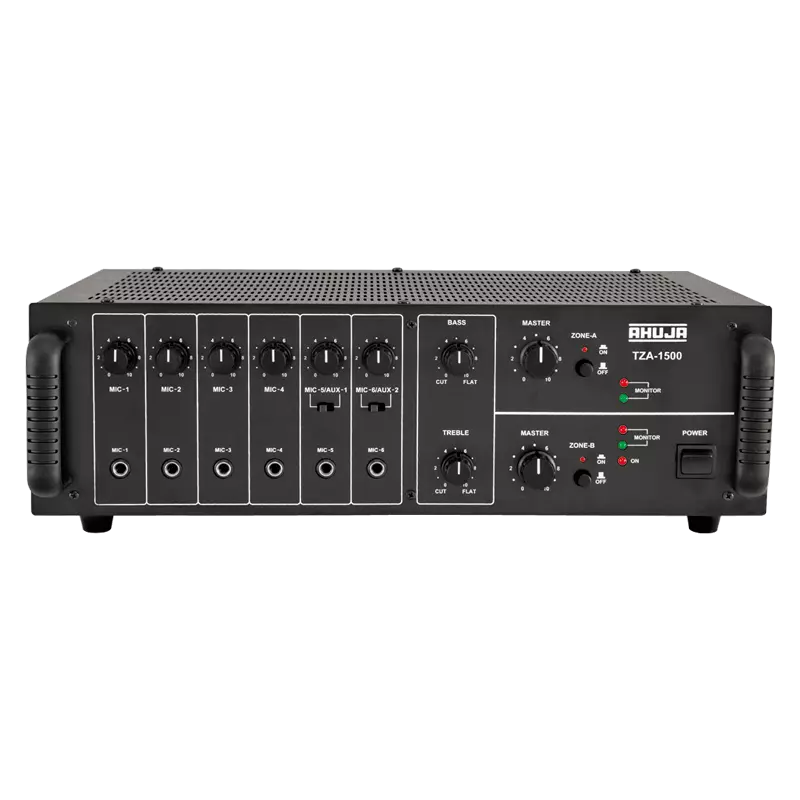

Mixer Amplifier Ahuja TZA- 1500
Ahuja TZA- 1500
2 ZONE PA MIXER AMPLIFIERS
160 WATTS
₹15,000.00
Share :
Product Details
- 6 Mic & 2 Aux Inputs.
- Preamplifier output for connecting to a Booster Amplifier and for recording the programme.
- Bass & Treble Controls.
- TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating.
- Instant transfer to DC power (Car Battery) if AC
- power fails.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
Specifications
All
- Power Output:100W + 100W Max. | 80W + 80W RMS at 10% THD | 70W + 70W RMS at 5% THD | 60W + 60W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:6 × Mic 0.65mV/4.7kΩ | 2 × Aux 100mV/470 kΩ | 1 × Line 1V/50kΩ
- Frequency Response:65-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Output:Preamp 200mV/600Ω
- Speaker Output:4Ω | 8Ω | 70V & 100V for each zone
- Power Supply:AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
- Power Consumption:AC: 300VA DC: 6A
