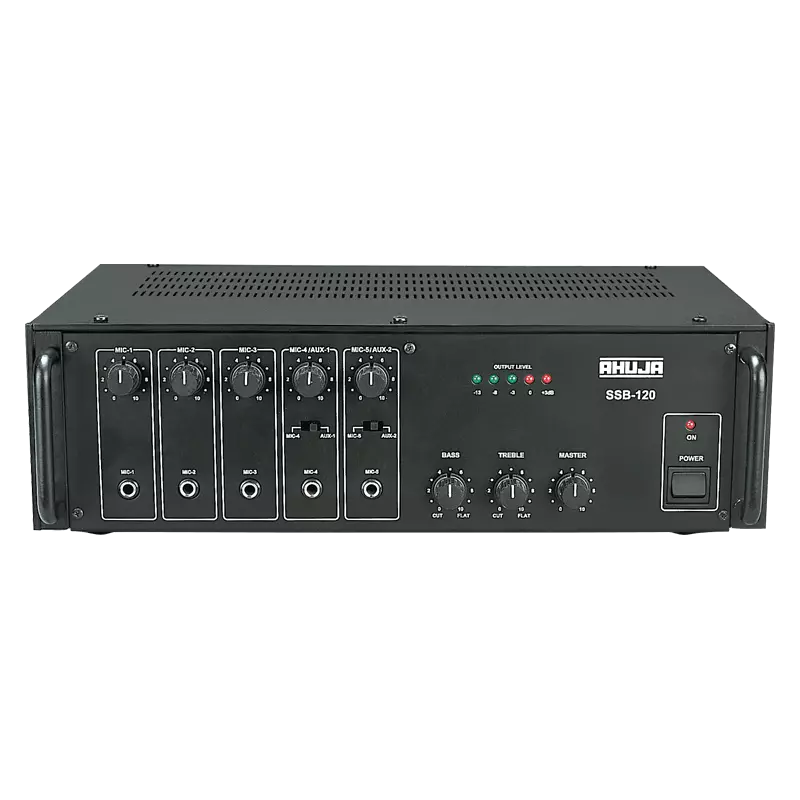

Mixer Amplifier Ahuja SSB-120
Ahuja SSB-120
MEDIUM WATTAGE PA MIXER AMPLIFIERS
120 WATTS
₹12,500.00
Share :
Product Details
- 5 Mic & 2 Aux Inputs.
- Line Ouput for connecting to a Booster Amplifier and Preamplifier Output for recording the programme.
- Cut type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications
All
- Power Output:160W Max. | 120W RMS at 10% THD | 105W RMS at 5% THD | 95W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:5 × Mic 0.65mV/4.7kΩ | 2 × Aux 100mV/470 kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Output:Preamp 200mV/600Ω | Line 1V/1kΩ
- Speaker Output:4Ω | 8Ω | 16Ω | 70V & 100V
- Power Supply:AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
- Power Consumption:AC: 250VA DC: 5.5A
