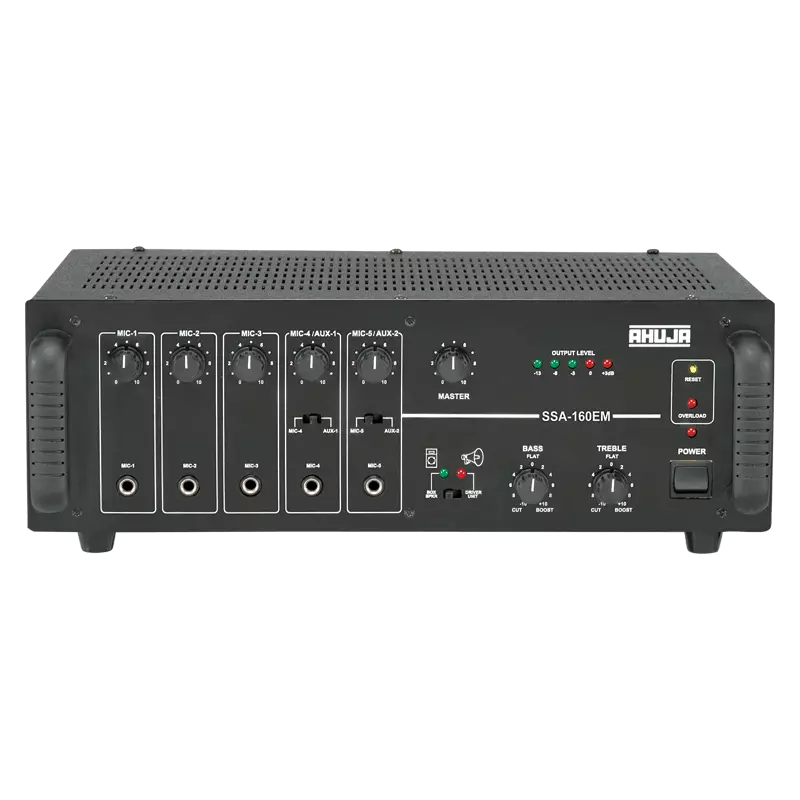

Mixer Amplifier Ahuja SSA-160EM
Ahuja SSA-160EM
160 WATTS
MEDIUM WATTAGE PA MIXER AMPLIFIERS
₹14,500.00
Share :
Product Details
- 5 Mic & 2 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-160EM to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Specifications
All
- Power Output:220W Max. | 160W RMS at 10% THD | 140W RMS at 5% THD | 120W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:5 × Mic 0.65mV/4.7kΩ | 2 × Aux 100mV/470kΩ | 1 × Line 1V/0k5Ω
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Output:Preamp 200mV/600Ω | Line 1V/1kΩ
- Speaker Output:4Ω | 8Ω | 70V & 100V
- Power Supply:AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
- Power Consumption:AC: 300VA DC: 4A
