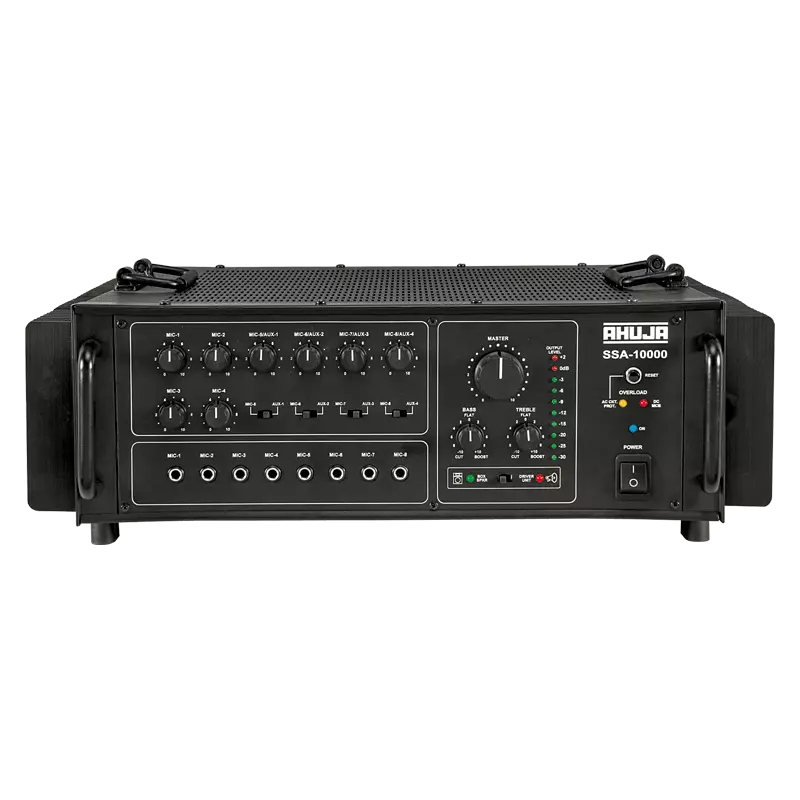

Mixer Amplifier Ahuja SSA- 10000
Ahuja SSA- 10000
High Wattage PA Mixer Amplifiers
1000 WATTS
₹49,000.00
Share :
Product Details
- Ahuja SSA-10000 is highly reliable 1000 watts PA Amplifier. This is designed to give high power clean sound and trouble free operation under extreme climatic conditions.
- 8 Mic & 4 Aux Inputs.
- Aux-4 input is through RCA socket specially for connecting CD/DVD player.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-10000 to be used as a Booster Power Amplifier.
- Resettable circuit breaker & MCB at back for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Specifications
All
- Power Output:1350W Max. | 1000W RMS at 10% THD | 850W RMS at 5% THD | 800W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:8 × Mic 0.8mV/4.7kΩ | 3 × Aux 100mV/50 kΩ | 1 × Aux 250mV/50 kΩ | 1 × Line 1V/50kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Output:Preamp 200mV/600Ω | Line 1V/1kΩ
- Speaker Output:2Ω | 4Ω | 70V & 100V
- Power Supply:AC: 220-240V 50/60Hz DC: 48V (4×12V Car Battery)
- Power Consumption:AC: 1600VA DC: 12A
