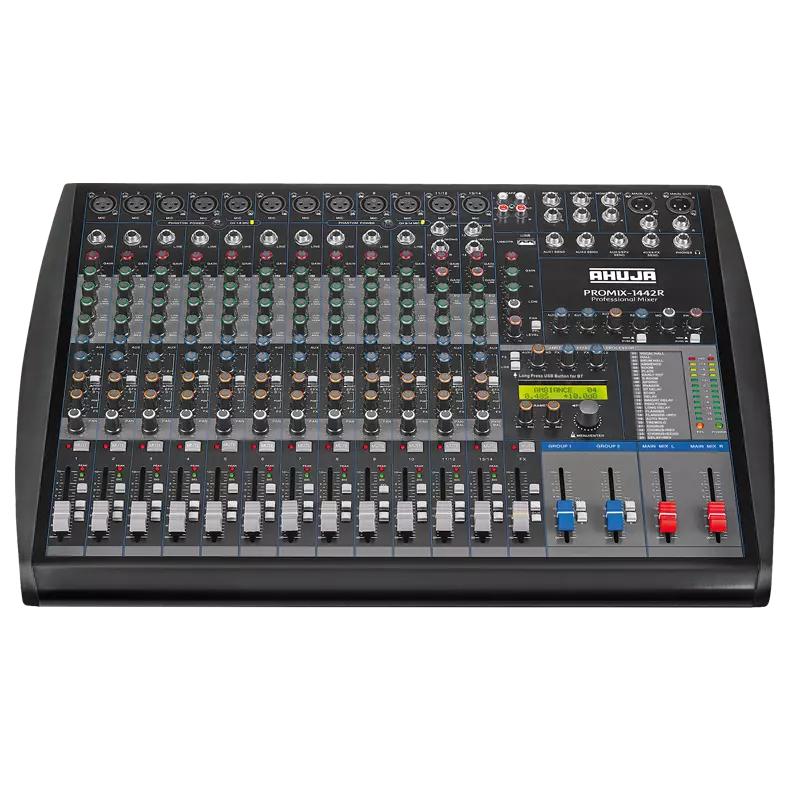

Mixer Ahuja PROMIX- 1442R
Ahuja PROMIX- 1442R
PA Audio Mixing Consoles - Stereo
With Built-in MP3 Recorder, 24 Digital Effects, 2 Group Outputs, 48V Phantom Supply on all Channels
₹27,200.00
Share :
Product Details
AC Operation
- Professional mixer with user-friendly construction & aesthetically designed side panels.
- 12 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. 2 STEREO Balanced inputs.
- Built-in MP3 recorder with USB playback and Bluetooth facility.
- Digital multi EFFECTS processor with 24 built-in effects.
- LCD display for viewing the effects/USB settings.
- All MIC inputs are through 3 pin F/XLR connectors.
- All LINE & STEREO inputs are through 6.3mm (1/4”) stereo phone jack sockets.
- All MIC inputs are available with 48V phantom supply which can be switched ON/OFF.
- Each input channel has a GAIN control, 4 band active EQ controls, AUX1, AUX2, AUX3/EFX,
- AUX4/FX and PAN control.
- The STEREO channel has a GAIN control, 3 band active EQ control, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
- Pre/Post selector switch for AUX1 and AUX2 in each channel.
- Channel MUTE switch provided on each individual channel.
- Peak LED for signal clipping indication. Signal LED for input signal indication.
- Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
- Stereo Tape Playback Input through L&R RCA sockets.
- Stereo Tape Output through L&R RCA sockets.
- Two group outputs through 6.3mm (1/4”) phone jack sockets and individual group faders.
- Monitor outputs through 6.3mm (1/4”) phone jack sockets and individual control.
- Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
- L&R AUX RETURN inputs with level control. PFL switch on each channel.
- Headphone output with Level Control for output monitoring.
- Operates on 240V 50Hz AC mains.
Specifications
all
- MIC INPUT Impedance/Gain:2kΩ Balanced/65dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/45dB
- SIGNAL TO NOISE RATIO:> 80dB
- POWER SUPPLY:AC: 220-240V | 50/60Hz
- Dimensions:W560 × H111 × D410 mm
- Weight:6.70kg
STEREO INPUT (L/Mono & R)
- THD:<0.08%
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
EQUALIZATION
- HI/HI-Mid/LOW-Mid/LOW:±12dB at 12kHz/2.5kHz/400Hz/80Hz
- Clip LED Indication:4dB prior to true clip
- Line Output Nominal/Max Level:4dBu/21dBu (1.22V/9V)
- Impedance:600Ω
- Digital Effects:24 Effects Digital Processor
- Digital Player:MP3 Player with Recording & BT Functions
- Headphone Output:200mV at 8Ω | THD <1%
MAXIMUM GAIN
- Mic Input to Line Outputs:90dB
- Line Input to Line Outputs:70dB
- Stereo Input to Line Outputs:20dB
- AUX Send (Pre) Unbalanced:5V
- AUX Send (Post) Unbalanced:9V
- AUX Return (L&R) Balanced:600mV
- Group Outputs:3V
- Monitor Outputs:1V
- Tape Output (L&R):775mV
- Tape Input (L&R):100mV
