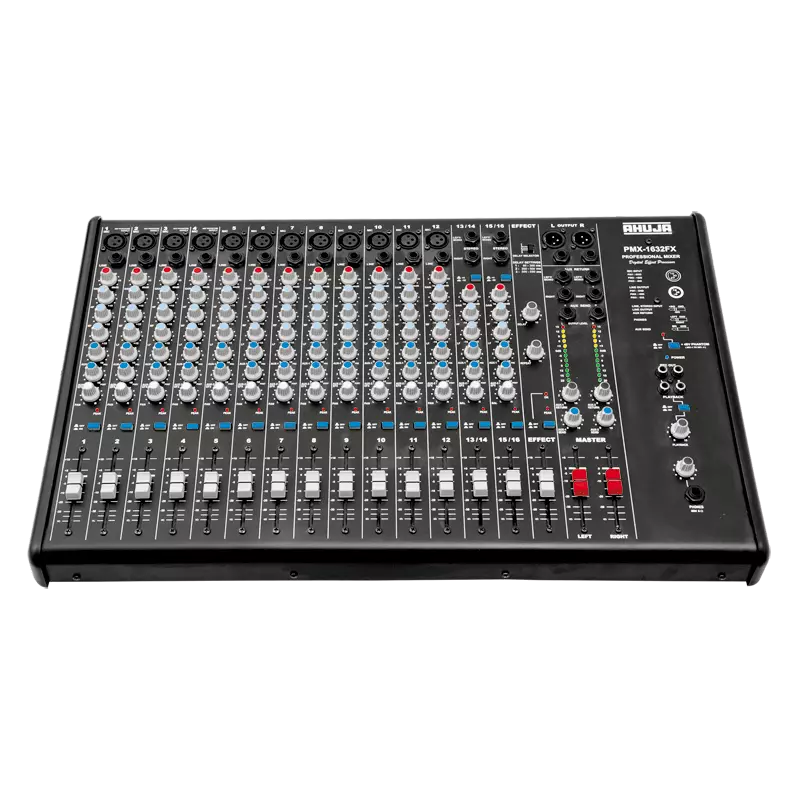

Mixer Ahuja PMX- 1632FX
Ahuja PMX- 1632FX
PA Audio Mixing Consoles - Stereo
48V Phantom Supply on 4 Channels
₹19,500.00
Share :
Product Details
AC Operation, With Digital Effects
- Rugged, stable, high quality analog mixers with user-friendly construction & aesthetically designed side panels.
- PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels.
- MIC/LINE Balanced Mono inputs with enhanced headroom.
- All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
- Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
- STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
- Separate EFFECT channel is provided for controlling the built-in digital effect processor through a delay selector switch and delay, repeat and level controls.
- Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader
- AUX2 /EFX control & a PAN control.
- Each Stereo channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
- Channel ON/OFF switch provided on each individual channel. Peak LED for signal clipping indication.
- High precision 60mm slide fader on each channel.
- Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
- Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
- Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
- Two stereo AUX RETURN balanced inputs with level controls.
- Headphone output with Level Control for output monitoring.
- Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
- Stereo Record output through L&R RCA sockets.
- Operates on 240V 50Hz AC mains.
Specifications
all
- MIC INPUT Impedance/Gain:2kΩ Balanced/65dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/45dB
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
- SIGNAL TO NOISE RATIO:> 70dB
- POWER SUPPLY:AC: 220-240V | 50Hz
- Delay Range Settings:60ms to 300ms | 300ms to 500ms | 500ms to 650ms
- Dimensions:W609 × H110 × D435mm
- Weight:9.7kg
STEREO INPUT (L/Mono & R)
- THD:<0.08%
- Impedance/Gain (-10dBu Input):10kΩ Balanced/14dB
- Impedance/Gain (+4dBu Input):10kΩ Balanced/0dB
EQUALIZATION
- Clip LED Indication:4dB prior to true clip
- Line Output Nominal/Max Level:4dBu/21dBu (1.22V/9V)
- Impedance:600Ω
- DELAY SYSTEM:Digital Signal Processing
- Headphone Output:200mV at 8Ω | THD <1%
- Bass/Mid/Treble:±12dB at 100Hz/2kHz/10kHz
MAXIMUM GAIN
- Mic Input to Line Outputs:78dB
- Line Input to Line Outputs:58dB
- Stereo Input to Line Outputs:28dB (-10dBu Input) 14dB (+4dBu Input)
- AUX Send (Pre) Unbalanced:1.4V/100Ω Unbalanced
- AUX Send (Post) Unbalanced:2.7V/100Ω Unbalanced
- Record Output (L&R):250mV/600Ω
- Playback Input (L&R):250mV/1kΩ (variable through GAIN control)
