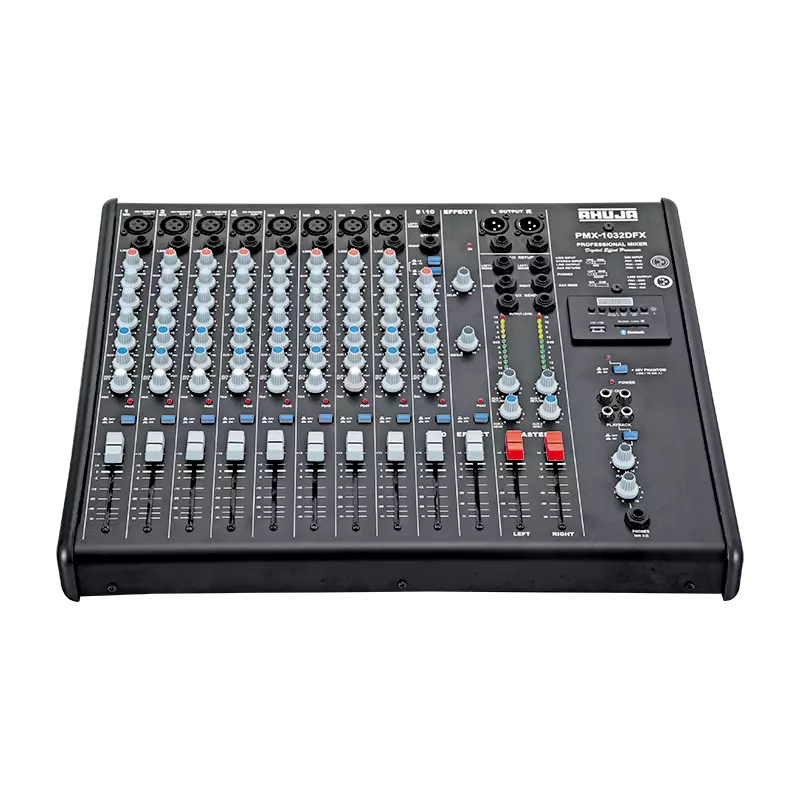

Mixer Ahuja PMX- 1032DFX
Ahuja PMX- 1032DFX
PA Audio Mixing Consoles - Stereo
48V Phantom Supply on 4 Channels With Built-in MP3 Player
₹16,700.00
Share :
Product Details
AC Operation with Digital Effects
- 8 x Balanced Mono Inputs. 1 x Balanced Stereo Input. XLR sockets for all Mic Inputs. Digital Effects with Delay, Repeat and Level controls. Built-in MP3 player with USB, SD/MMC Card reader and Bluetooth playback facility. Phantom Supply available on 4 channels.
- Ahuja introduces a high performance Professional PA Mixer PMX-1032DFX, which has 8 MIC/LINE input channels, 1 Stereo input channel and built in MP3 player. It is designed for exceptional sound quality & superior reliability in both monitoring and live sound applications
- Rugged, reliable, high quality analog mixer with user-friendly construction & aesthetically designed side panels.
- Eight MIC/LINE Balanced Mono inputs with enhanced headroom.
- One STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
- Built-in MP3 player with USB, SD/MMC card reader and Bluetooth.
- Seperate EFFECT channel is provided for controlling the built-in digital effect processor through delay, repeat and level controls.
- All MIC inputs are through 3 pin F/XLR connectors.
- All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
- Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
- Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader AUX2 /EFX control & a PAN control.
- The STEREO channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
- Channel ON/OFF switch provided on each individual channel.
- Peak LED for signal clipping indication.
- High precision 60mm slide fader on each channel.
- Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
- Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
- Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
- Two stereo AUX RETURN balanced inputs with level controls.
- Headphone output with Level Control for output monitoring.
- Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
- Stereo Record output through L&R RCA sockets.
- Operates on 240V 50Hz AC mains.
Specifications
all
- MIC INPUT Impedance/Gain:2kΩ Balanced/65dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/45dB
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
- Digital Player:MP3 Player with USB | SD and MMC Card Reader
- SIGNAL TO NOISE RATIO:> 70dB
- POWER SUPPLY:AC: 220-240V | 50Hz
- Delay Range Settings:1: 60-300ms | 2: 300-500ms | 3: 500-650ms Variable from 20 to 300ms
- Dimensions:W465 × H110 × D435 mm
- Weight:7.70kg
STEREO INPUT (L/Mono & R)
- THD:<0.08%
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
- Impedance/Gain (-10dBu Input):10kΩ Balanced/14dB
- Impedance/Gain (+4dBu Input):10kΩ Balanced/0dB
EQUALIZATION
- Clip LED Indication:4dB prior to true clip
- Line Output Nominal/Max Level:4dBu/21dBu (1.22V/9V)
- Impedance:600Ω
- DELAY SYSTEM:Digital Signal Processing
- Headphone Output:200mV at 8Ω | THD <1%
MAXIMUM GAIN
- Mic Input to Line Outputs:78dB
- Line Input to Line Outputs:58dB
- Stereo Input to Line Outputs:28dB (-10dBu Input) 14dB (+4dBu Input)
- AUX Send (Pre) Unbalanced:1.4V/100Ω Unbalanced
- AUX Send (Post) Unbalanced:2.7V/100Ω Unbalanced
- AUX Return (L&R) Balanced:150mV/10kΩ Balanced
- Record Output (L&R):250mV/600Ω
- Playback Input (L&R):250mV/1kΩ (variable through GAIN control)
