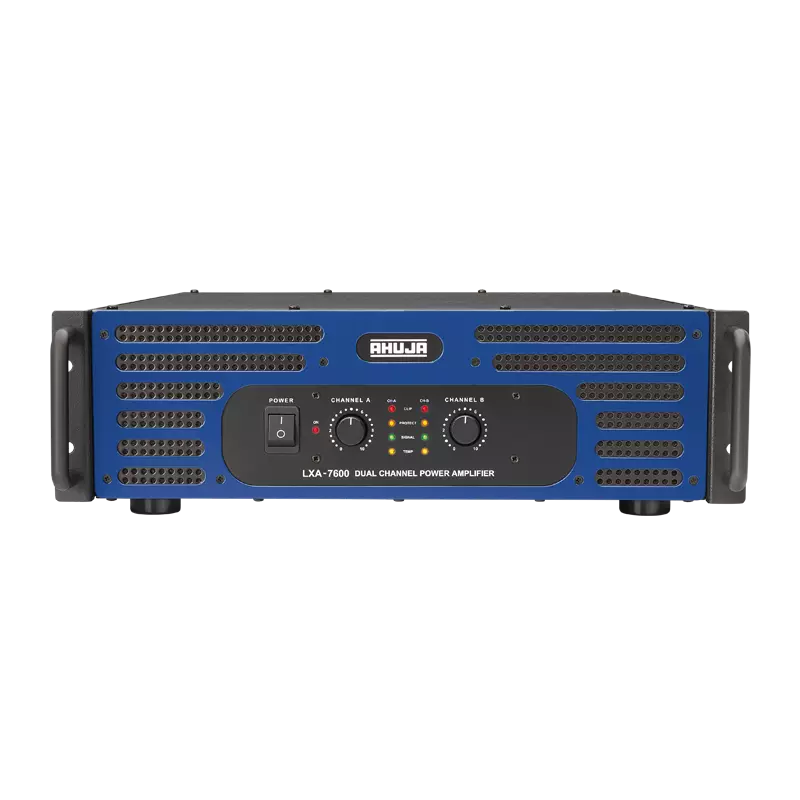

Power Amplifier Ahuja LXA- 7600
Ahuja LXA- 7600
Dual Channel Power Amplifiers
3800+3800 WATTS
₹76,200.00
Share :
Product Details
- Dual channel direct coupled power amplifier.
- 7600 Watts rated output.
- Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
- 80Hz / 120Hz LPF.
- Built-in circuit for HF protection.
- Limiter ON/OFF.
- Two selectable input sensitivities.
- Class H operation for optimum efficiency.
- BIS approved.
Specifications
All
- Continuous Rated Power Stereo/Mono:8Ω : 1600W + 1600W RMS | 4Ω : 2600W + 2600W RMS | 2Ω : 3800W + 3800W RMS
- Bridged Output:8Ω : 5200W RMS | 4Ω : 7600W RMS
- THD + N:0.1%
- Frequency Response (-1dB):(-1dB) 20-20000Hz
- Low Pass Filter:80/120Hz @ 24dB per octave
- Power Bandwidth (0.5% THD):20-20000Hz
- Input Sensitivity:0dBu (775mV) & 4dBu (1.23V) (Selectable)
- Input Impedance:10k Unbalanced | 20k Balanced
- Signal To Noise Ratio:95dB
- Channel Separation:65dB at 1kHz
- Damping Factor (8W ):500
- Slew Rate:35V/µs
- Protections:Temperature | DC | RFI | Short Circuit | Overload | Built-in Limiter (ON/OFF) AC: Magnetic Circuit Protector 20A | ± DC: Fuse 1 x 30A (T 30A L) for each Channel | Fuse 2×3 A (T 3A L)
- Input Connectors:2×XLR | Stereo Phone Jack 6.3mm
- Output Connectors:Speakon 4-Way and heavy duty Binding Post for each channel
- Cooling:2×fixed Speed DC Fan and 2 × Variable Speed DC Fan with Temperature Sensing
- Front Panel Controls:2×41 Step Level Attenuators
- Indicators:Power ON/FAULT | Signal | Clip | Temperature | Protect (Ch. A & B)
- Power Consumption (Rated):9000VA @ 220-240V ~ 50/60Hz
