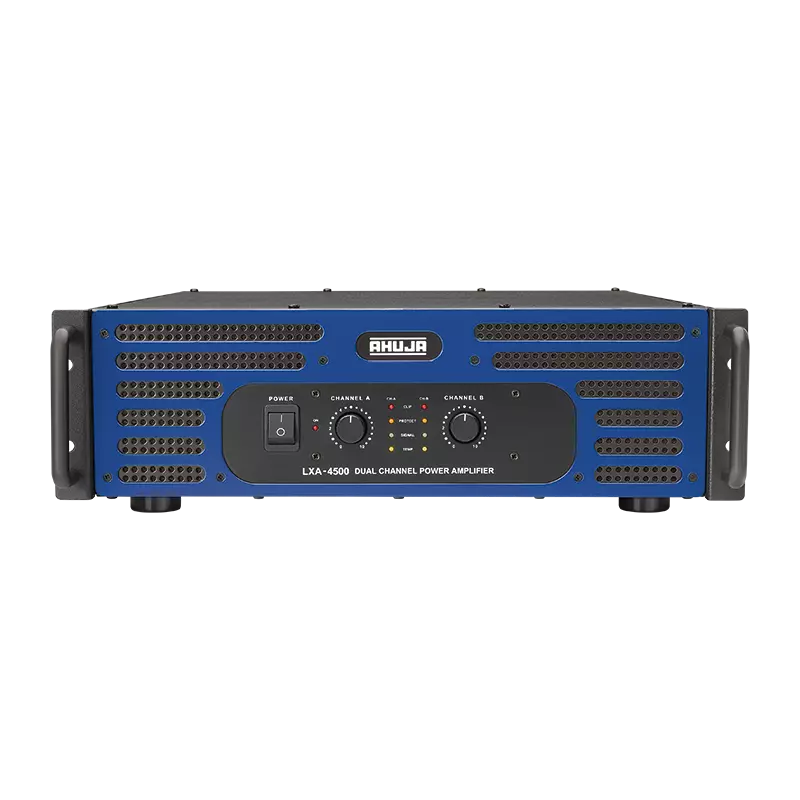

Power Amplifier Ahuja LXA- 4500
Ahuja LXA- 4500
Dual Channel Power Amplifiers
2250+2250 WATTS
₹56,600.00
Share :
Product Details
AC Operation
- Dual channel direct coupled amplifier.
- 4500 Watts rated output.
- Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
- 80Hz / 120Hz LPF.
- Built-in circuit for HF protection.
- Limiter ON/OFF.
- Two selectable input sensitivities.
- Class H operation for optimum efficiency.
Specifications
All
- Continuous Rated Power Stereo/Mono:8Ω : 1000W + 1000W RMS | 4Ω : 1550W + 1550W RMS | 2Ω : 2250W + 2250W RMS
- Bridged Output:8Ω : 3100W RMS | 4Ω : 4500W RMS
- THD + N:1.0%
- Frequency Response (-1dB):20-20000Hz
- Low Pass Filter:80/120Hz @ 24dB per octave
- Power Bandwidth (0.5% THD):20-20000Hz
- Input Sensitivity:0dBu (775mV) & 4dBu (1.23V) (Selectable)
- Input Impedance:10k Unbalanced | 20k Balanced
- Signal To Noise Ratio:95dB
- Channel Separation:65dB at 1kHz
- Damping Factor (8W ):500
- Slew Rate:35V/µs
- Protections:Temperature | DC | RFI | Short Circuit | Overload | Built-in Limiter (ON/OFF) AC: Circuit Protector 25A | ± DC: Fuse 2 x 25Amp. (T 25A L) for each zone Fuse 2×3 Amp. (T 3A L)
- Input Connectors:2×XLR | Stereo Phone Jack 6.3mm
- Output Connectors:Speakon 4-Way and heavy duty Binding Post for each channel
- Cooling:Variable Speed DC Fan with Temperature Sensing
- Front Panel Controls:2×41 Step Level Attenuators
- Indicators:Power ON | Signal | Clip | Temperature | Protect (Ch. A & B)
- Power Consumption (Rated):5400VA @ 220-240V ~ 50/60Hz
