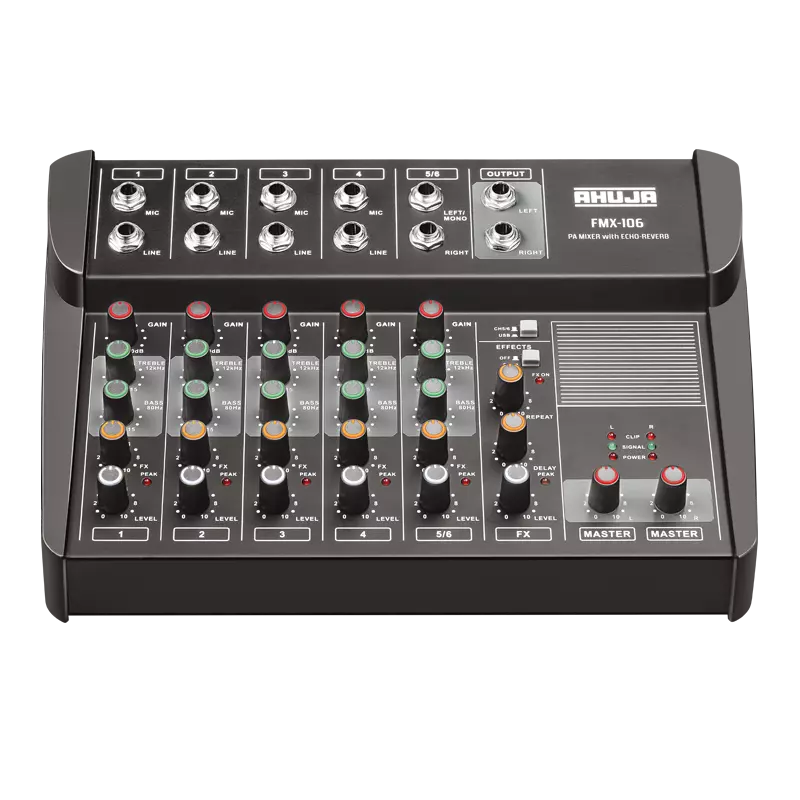

Mixer Ahuja FMX-106
Ahuja FMX-106
PA AUDIO MIXING CONSOLES - STEREO
6 Channel
₹4,950.00
Share :
Product Details
- Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
- Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4”) stereo jack socket.
- Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
- Active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
- Separate FX (effects) level control for each input channel.
- Stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
- Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
- Line level LEFT & RIGHT outputs through 6.3 mm (1/4”) stereo jack sockets.
- Individual SIGNAL & CLIP LEDs for optimum setting of signal levels.
Specifications
all
- MIC INPUT Impedance/Gain:2kΩ Balanced/65dB| 1kΩ Unbalanced/65dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/45dB | 10kΩ Unbalanced/45dB
- Frequency Response:25Hz-20 kHz (-1dB)
- SIGNAL TO NOISE RATIO:> 68dB
- POWER SUPPLY:AC: 220-240V | 50/60Hz
- Outputs:Line Output LO: -10dBu/+2dBu (200mV/1V) | Line Output HI: 0dBu/+17dBu (775mV/5.5V)
- Distortion:< 1%
- Tone Controls:Bass: ±15dB at 80Hz | Treble: ±15dB at 12kHz
- Delay Range Settings:Variable from 20 to 300ms
- Dimensions:W281 x H75 x D210 mm
- Weight:1.60kg
EQUALIZATION
- DELAY SYSTEM:Digital Signal Processing
