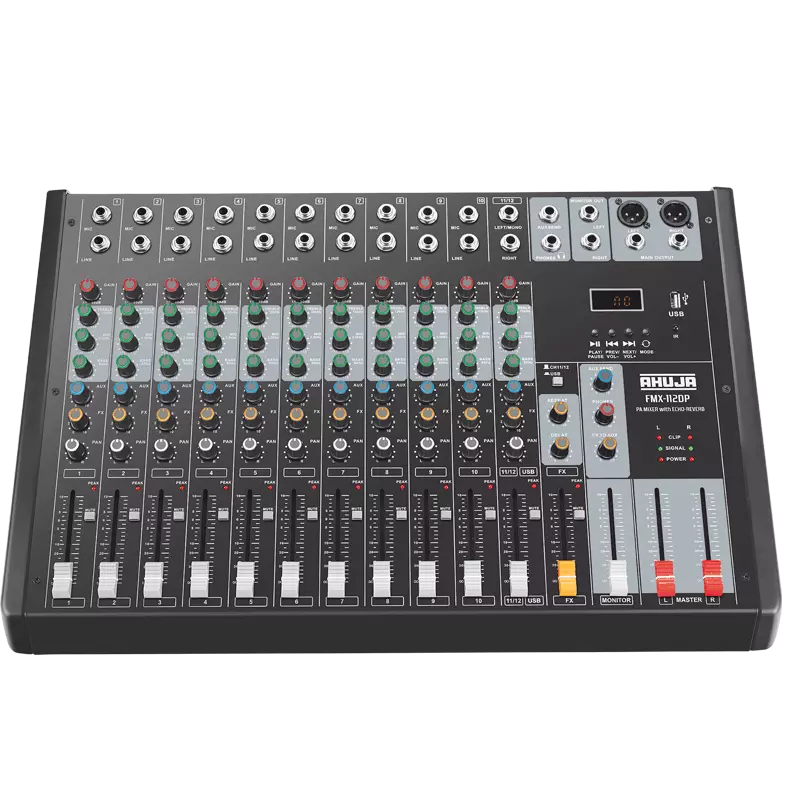

Mixer Ahuja FMX- 112DP
Ahuja FMX- 112DP
PA Audio Mixing Consoles - Stereo
With built-in MP3 Recorder & Digital Effects
₹14,700.00
Share :
Product Details
AC Operation
- Professional 12 channel mixer with user friendly features, in a compact & aesthetically superior construction.
- 10 MIC, 10 LINE & 01 STEREO Balanced inputs, through 6.3mm ( 1/4”) stereo phone jack socket.
- Built-in digital MP3 player with recording & BT functions.
- Digital Effects channel with DELAY, REPEAT & LEVEL controls.
- Each input channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
- The STEREO channel has a GAIN control, 3 band active EQ controls, AUX, FX and PAN controls.
- Each input channel provides Peak LED to indicate excessive input signal levels.
- Each channel has a signal Mute switch and a slide fader control for accurate setting of signal level.
- Selector switch available between Stereo channel (Ch.11/12) & USB playback channel.
- Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
- MONITOR L&R outputs through 6.3mm (1/4”) phone jack sockets and individual monitor fader control.
- AUX SEND output with independent level control.
- Headphone output with Phones Control for output monitoring.
- Operates on 240V 50Hz AC mains.
Specifications
all
- MIC INPUT Impedance/Gain:2kΩ Balanced/65dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/45dB
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
- Digital Player:MP3 Player/Recorder with USB Reader | Bluetooth
- SIGNAL TO NOISE RATIO:> 80dB
- POWER SUPPLY:AC: 220-240V | 50/60Hz
- Delay Range Settings:Variable from 20 to 300ms
- Dimensions:W520 × H105 × D350mm
- Weight:5.20kg
STEREO INPUT (L/Mono & R)
- Impedance/Gain:10kΩ Balanced/20dB
- THD:<0.1%
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
EQUALIZATION
- HI/HI-Mid/LOW-Mid/LOW:±12dB at 12kHz/2.5kHz/400Hz/80Hz
- Clip LED Indication:4dB prior to true clip
- Line Output Nominal/Max Level:4dBu/21dBu (1.22V/9V)
- Impedance:600Ω
- DELAY SYSTEM:Digital Signal Processing
- Headphone Output:200mV at 8Ω | THD <1%
