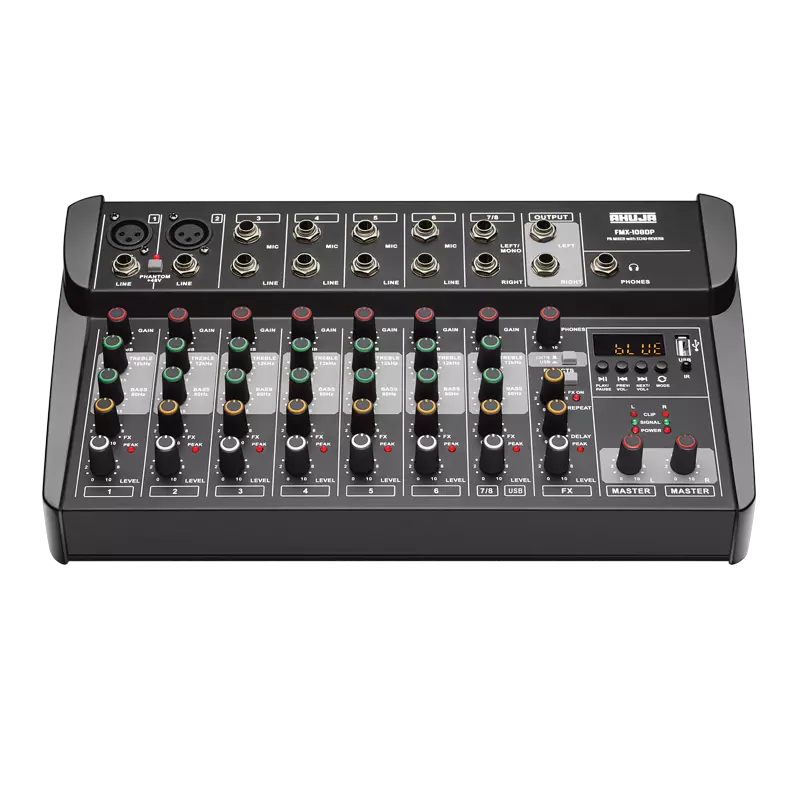

Mixer Ahuja FMX- 108DP
Ahuja FMX- 108DP
PA Audio Mixing Consoles - Stereo
With built-in MP3 Player & Digital Effects
₹7,150.00
Share :
Product Details
AC Operation
- Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
- Provided with two balanced XLR microphone inputs, with switchable +48V Phantom supply.
- Additionally, four low impedance microphones can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4") stereo jack socket.
- Upto six line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3mm (1/4") stereo jack socket.
- Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
- Two band equalizer with active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
- Separate FX (effects) level control for each input channel.
- MP3 digital player with recording and playback through USB. Bluetooth facility also available.
- One independent stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
- Each channel has a PEAK LED which glows when the level of input signal is excessive.
- A push switch is provided for selection between Ch 7/8 and USB channel.
- Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
- Effects ON/OFF switch with FX ON & PEAK LEDs.
- Line level LEFT & RIGHT outputs through 6.3 mm (1/4") stereo jack sockets.
- Headphone output, with independent volume control, is available through a 6.3mm (1/4") stereo jack socket.
- Individual SIGNAL & CLIP LEDs for optimum setting of Left & Right output levels.
- Individual MASTER volume controls for Left & Right line outputs.
- Operates on 240V, 50Hz AC Mains.
Specifications
all
- MIC INPUT Impedance/Gain:2kW Balanced/65dB | 1kW Unbalanced/65dB
- LINE INPUT Impedance/Gain:20kW Balanced/45dB | 10kW Unbalanced/45dB
- Frequency Response:25Hz-20 kHz (-1dB)
- SIGNAL TO NOISE RATIO:> 68dB
- Protection:AC: Fuse 1Amp. 250V (T 1A L)
- POWER SUPPLY:AC: 220-240V | 50Hz
- Outputs:600W
- Delay Range Settings:Variable from 20 to 300ms
- Digital Recorder:MP3 Recorder & Playback
- Dimensions:W345 x H75 x D210mm
- Weight:1.85kg approx.
STEREO INPUT (L/Mono & R)
- THD:<0.1%
- Frequency Response:25Hz - 20kHz (+0 | -1dB)
EQUALIZATION
- Clip LED Indication:4dB prior to true clip
- Headphone Output:200mV at 8W
Line Output L/R
- Nominal:0dBu (775mv)
- Maximum:+21dBu (9V)
