Power Amplifier Ahuja DXA- 3502

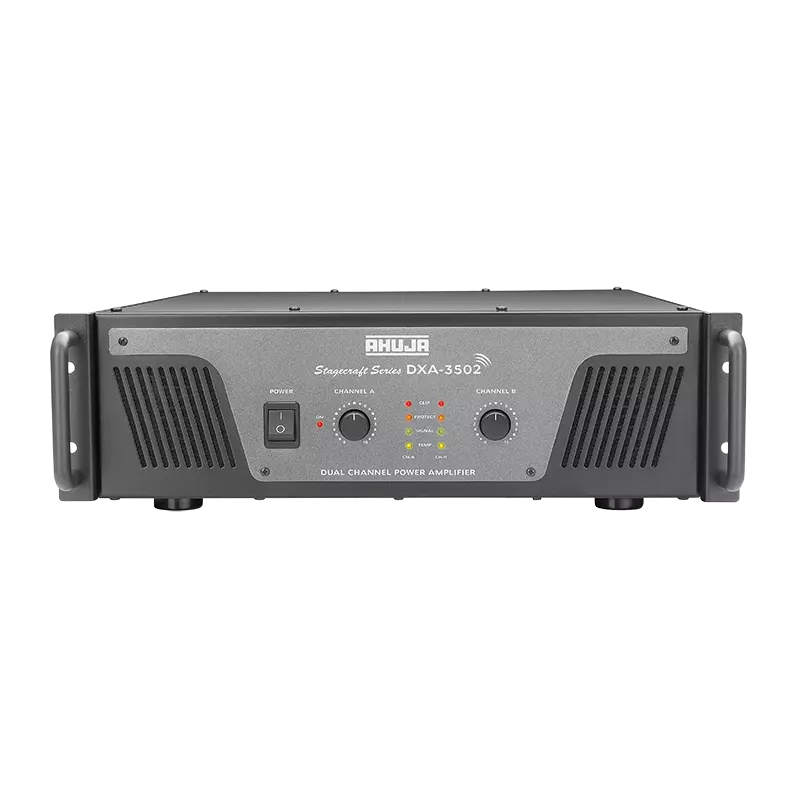

Ahuja DXA- 3502
Dual Channel Power Amplifiers
1750+1750 WATTS
₹58,100.00
Share :
Product Details
Dual Channel PA Power Amplifier
DXA-3502 is a rugged and most reliable dual channel amplifier. It sets a new benchmark for professionals requiring a sonically superior, high power amplifier. It has been designed to operate under stringent working conditions such as wide voltage fluctuations due to gensets/AC mains and high ambient temperatures. Adequate safeguards have been built-in to counter adverse working conditions. Ease of operation, combined with service accessibility has been optimized in the design.
Class H operation for optimum efficiency.
Specifications
All
- Continuous Rated Power Stereo/Mono:8Ω 650W + 650W RMS | 4Ω 1200W + 1200W RMS | 2Ω 1750W + 1750W RMS
- Bridged Output:8Ω 2400W RMS | 4Ω 3500W RMS
- THD + N:0.5%
- Frequency Response (-1dB):20-20000Hz
- Power Bandwidth (0.5% THD):20-20000Hz
- Input Sensitivity:0dBu (775mV) & 4dBu (1.23V) (Selectable)
- Input Impedance:10k Unbalanced | 20k Balanced
- Signal To Noise Ratio:95dB
- Channel Separation:65dB at 1kHz
- Damping Factor (8W ):500
- Slew Rate:35V/µs
- Protections:Temperature | DC | RFI | Short Circuit | Overload | AC over voltage | Built-in limiter
- Input Connectors:2×XLR | Stereo Phone Jack 6.3mm
- Output Connectors:Speakon 4-Way and heavy duty Binding Post for each channel
- Cooling:Variable Speed DC Fan with Temperature Sensing
- Front Panel Controls:2×41 Step Level Attenuators
- Indicators:Power ON | Signal | Clip | Temperature | Protect (Ch. A & B)
- Power Consumption (Rated):4200VA @ 220-240V~50/60Hz
