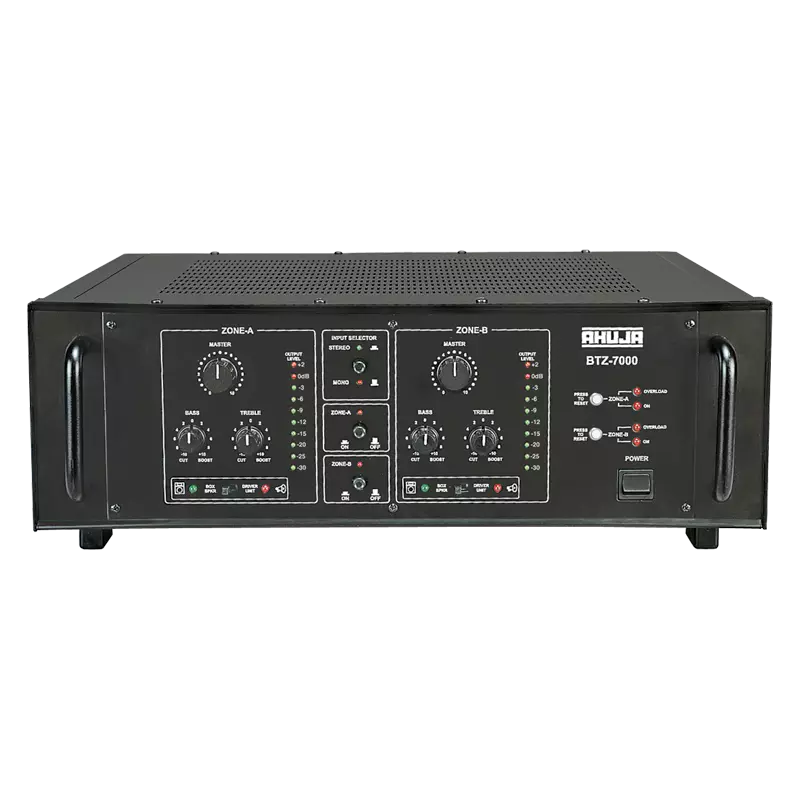

Power Amplifier Ahuja BTZ-7000
Ahuja BTZ-7000
2 ZONE PA POWER AMPLIFIERS
700 WATTS
₹38,500.00
Share :
Product Details
- Stereo Music Operation for DJ programmes.
- Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for places of worship.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
Specifications
All
- Power Output:500W + 500W Max.| 350W + 350W RMS at 10% THD| 300W + 300W RMS at 5% THD| 280W + 280W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:Mono 2 × 200mV/100kΩ | Stereo L/R 200mV/100kΩ | Line L/R 1V/50kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Outputs:Line L/R 1V/1kΩ
- Speaker Outputs:4Ω | 8Ω | 70V & 100V for each zone
- Power Supply:AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
- Power Consumption:AC: 1100VA DC: 13A
