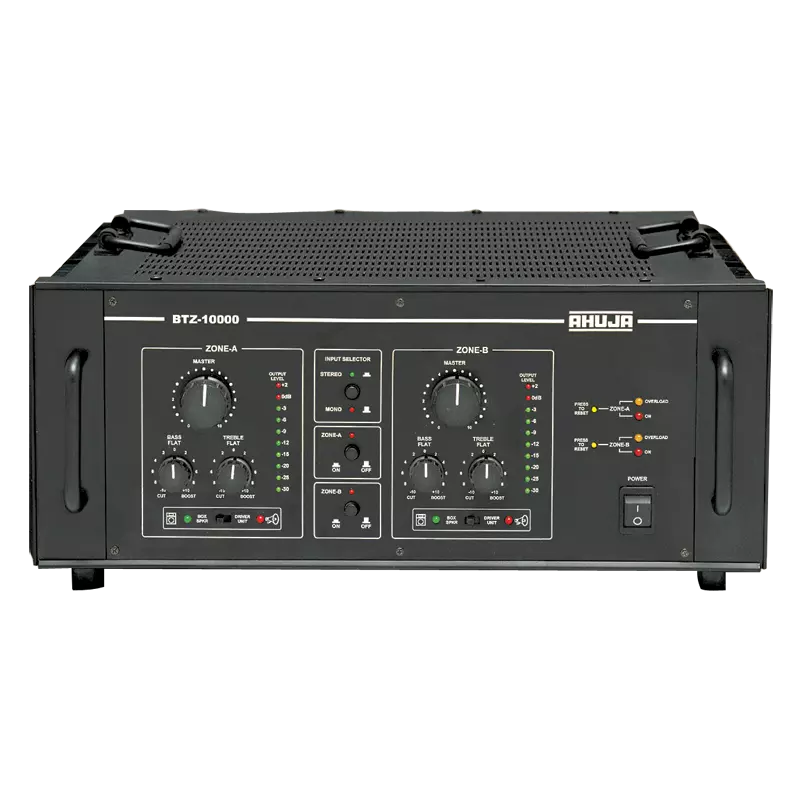

Power Amplifier Ahuja BTZ-10000
Ahuja BTZ-10000
ZONE PA POWER AMPLIFIERS
1000 WATTS
Non-returnable
₹48,000.00
Share :
Product Details
- Ahuja model BTZ-10000 is rugged, reliable, cost-effective 1000 watts Two Zone Amplifier. BTZ-10000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
- Stereo Music input for DJ programmes.
- Facilitates connection and operation of two groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
Specifications
All
- Power Output:750W + 750W Max. | 500W + 500W RMS at 10% THD 450W + 450W RMS at 5% THD | 415W + 415W RMS at 2% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:Mono 2 × 200mV/100kΩ | Stereo L/R 200mV/100kΩ | Line L/R 1V/50kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Speaker Outputs:4Ω | 8Ω | 70V & 100V for each zone
- Power Supply:AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
- Power Consumption:AC: 1600VA DC: 16A
