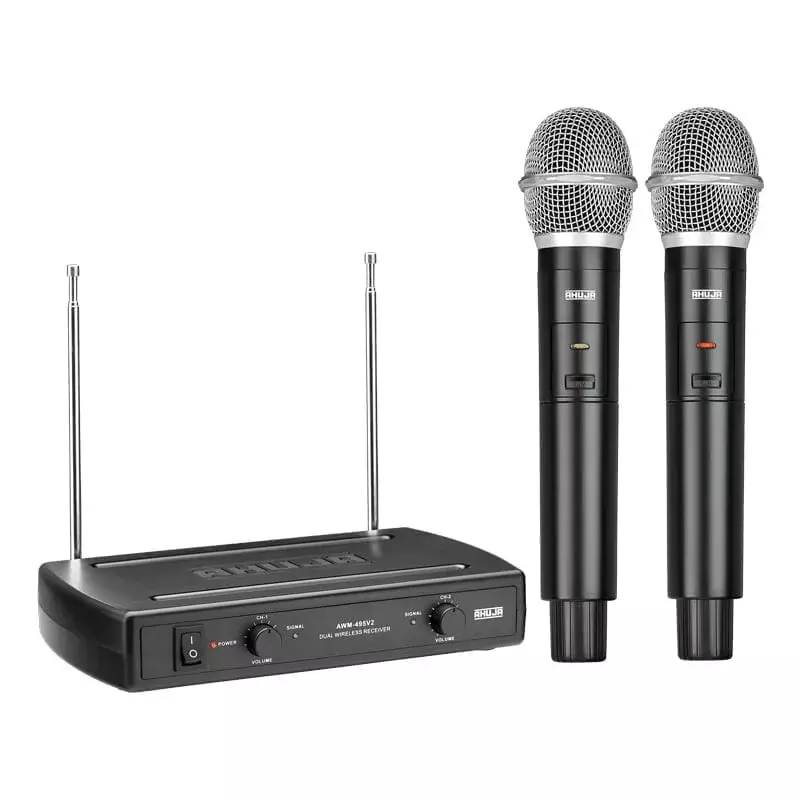

Microphones Ahuja AWM 495V2
Ahuja AWM 495V2
Dual Hand Wireless Microphone
₹4,750.00
Share :
Product Details
- Compact, lightweight, Dual Channel VHF Wireless Microphone System.
- Operates at Quartz Crystal Locked VHF High Band frequency and available in different frequency groups. Two transmitters with separate frequencies and one dual channel receiver.
- Internal antenna in the transmitter and two telescopic antennas in the receiver for clear and distortion free reception.
- Receiver operates on 12V DC through an AC Adaptor supplied along with the system. Each transmitter operates with a 2×1.5V
- AA Pencil Cell.
- Transmitters have 2-position ON/OFF slide switch.
- Audio output from receiver available at OUT 1 & OUT 2 individually and as mixed output at OUT 1 + 2.
Specifications
Wireless Microphone
- TRANSMITTER SPECIFICATIONS:.
- RF OUTPUT POWER:<15mW (Max.)
- MODULATION MODE:FM (F3E)
- MICROPHONE ELEMENT:Dynamic | Cardioid
- FREQUENCY RESPONSE:50-15000Hz
- DYNAMIC RANGE:80dB
- CURRENT CONSUMPTION:≤100mA
- POWER REQUIREMENT:3V (2 x 1.5V AA Pencil Cells)
- ANTENNA TYPE:Internal dipole
- CONTROLS:Transmitter ON/OFF switch
- INDICATIONS:Red & Green LEDs for indicating
- DIMENSIONS:055 (L248) mm
- WEIGHT:180g (w/o battery)
- RECEIVER SPECIFICATIONS:.
- FREQUENCY STABILITY:± 0.005% Quartz Crystal Controlled
- RECEIVING METHOD:Non-diversity
- AUDIO OUTPUT:Channel 1:0-55mV/1k02 | Channel 2: 0-55mV/1k0 | Channel 1+2:0-55mV/1k0
- SIGNAL TO NOISE RATIO:> 80dB
- DISTORTION:<0.5%
- FREQUENCY RESPONSE.:50-15000Hz
- ANTENNA.:Telescopic
- POWER REQUIREMENT.:240V AC 50Hz for AC adaptor (supplied along with)
- CONTROLS.:Power ON/OFF Switch | Volume Control for Channel-1 | Volume Control for Channel-2
- DIMENSIONS.:W230 x H42 x D150 mm
- WEIGHT.:353 g
