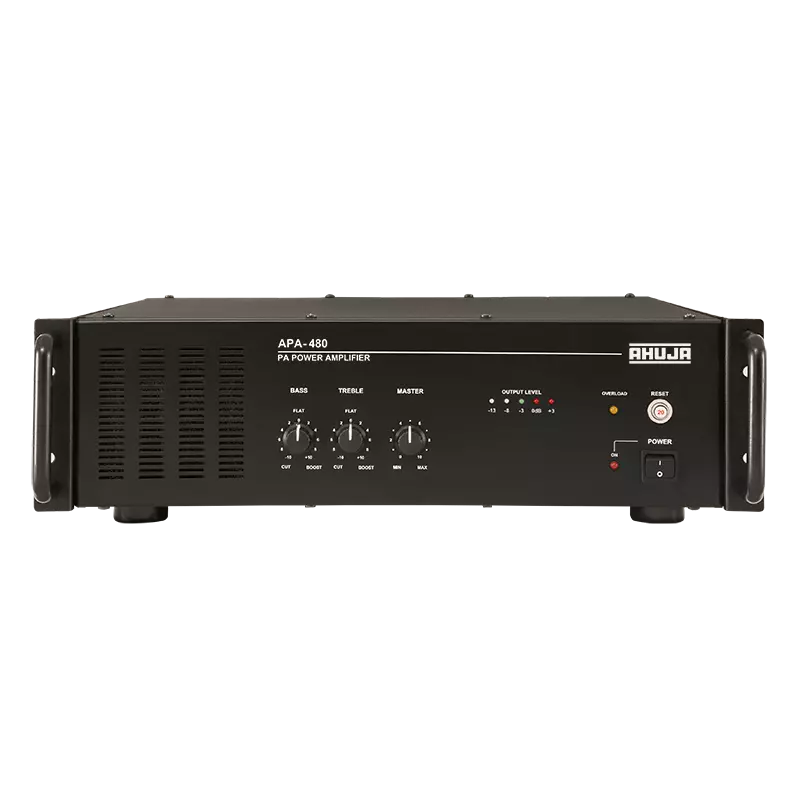

Power Amplifier Ahuja APA-480
Ahuja APA-480
INSTALLATION PA POWER AMPLIFIERS
600 WATTS
₹35,400.00
Share :
Product Details
- 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
- 100V input is provided for connecting another amplifier’s output in long line applications.
- Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit.
- Loop through output for connecting another booster amplifier.
- 19” Rack mountable chassis.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications
All
- Power Output:750W Max.| 600W RMS at 10% THD| 550W RMS at 5% THD| 500W RMS at 2% THD| 480W RMS at 1% THD
- Output Regulation:≤ 2 dB | no load to full load at 1kHz
- Input Channels:1 × 200mV/470kΩ (unbal.)| 2 × 1V/50kΩ (bal.)| 1 × 100V Input/50kΩ
- Frequency Response:50-15000Hz ±3dB
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±10dB at 100Hz | Treble: ±10dB at 10kHz
- Outputs:Loop through 1 × 200mV/600W| 2 ×1V/1kW
- Speaker Outputs:4Ω | 8Ω | 70V & 100V
- Power Supply:AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
- Power Consumption:AC: 1200VA DC: 15A
