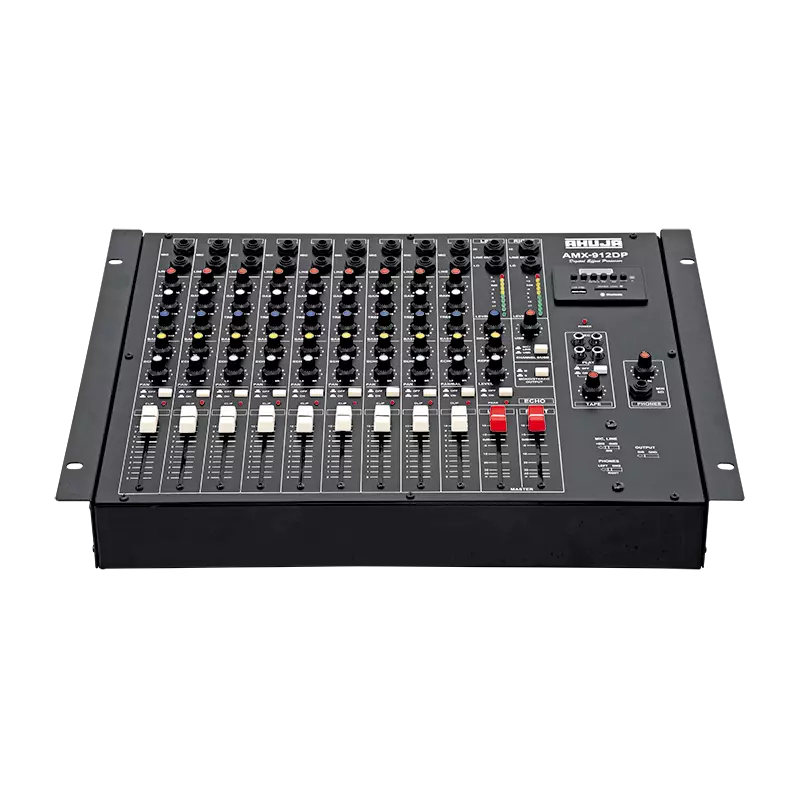

Mixer Ahuja AMX- 912DP
Ahuja AMX- 912DP
PA Audio Mixing Consoles - Stereo
9 Channel With built-in MP3 Player & Digital Effects
₹14,950.00
Share :
Product Details
AC & 24V DC Operation
- Input Channels: Each Channel has separate 6.3mm (1/4”) balanced phone jack for Mic & Line which accepts both balanced & unbalanced signals.
- USB Playback: Built-in MP3 Player selectable through Channel 9/USB Switch and controllable through an independant USB input volume control. Channel 9 can be used for Mic & Line inputs or USB Playback function.
- Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in ‘Mono’ position.
- Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
- Echo section provided with Delay, Repeat & Level controls.
- Stereo RCA IN/OUT for record and playback.
- Headphone output with Level Control for output monitoring.
Specifications
all
- Power Requirement:AC: 220-240V 50/60Hz | DC: 24v (2×12V Car Battery)
- MIC INPUT Impedance/Gain:2kΩ/62dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/42dB | 10kΩ Unbalanced/42dB
- Frequency Response:30Hz - 20kHz (+0 | -1dB)
- Digital Player:MP3 Player with USB | SD and MMC Card Reader
- SIGNAL TO NOISE RATIO:> 70dB (0dBm | 0.775V)
- Outputs:Line Output LO: -10dBu/+2dBu (200mV/1V) | Line Output HI: 0dBu/+17dBu (775mV/5.5V)
- Distortion:< 0.08%
- Tone Controls:Bass : ±12dB at 100Hz | Treble : ± 12dB at 10kHz
- Dimensions:W483 × H93 × D366 mm
- Weight:6.90kg
EQUALIZATION
- DELAY SYSTEM:Digital Signal Processing
