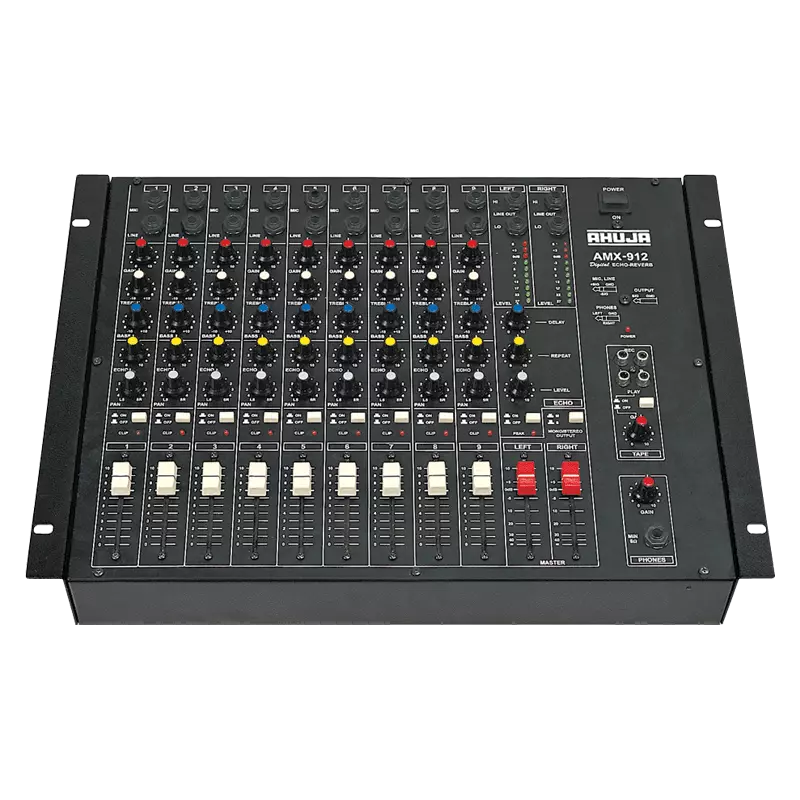

Mixer Ahuja AMX- 912
Ahuja AMX- 912
PA Audio Mixing Consoles - Stereo
9 Channel
₹13,450.00
Share :
Product Details
AC & 24V DC Operation
Input Channels: Each Channel has separate 1/4” balanced phone jack for Mic & Line & accepts both balanced & unbalanced signals.
Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in ‘Mono’ position.
Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
Specifications
all
- Power Requirement:AC: 220-240V 50/60Hz | DC: 24v (2×12V Car Battery)
- MIC INPUT Impedance/Gain:2kΩ/62dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/42dB | 10kΩ Unbalanced/42dB
- Frequency Response:30Hz - 20kHz (+0 | -1dB)
- SIGNAL TO NOISE RATIO:> 70dB (0dBm | 0.775V)
- Distortion:< 0.08%
- Tone Controls:Bass : ±12dB at 100Hz | Treble : ± 12dB at 10kHz
- Echo Reverb System:Digital Signal Processing
- Dimensions:W483 × H93 × D366 mm
- Weight:6.70kg
OUTPUT
- Line Output LO:-10dBm/+2dBm (200mV/1V)
- Line Output HI:0dBm/+17dBm (775mV/5.5V)
