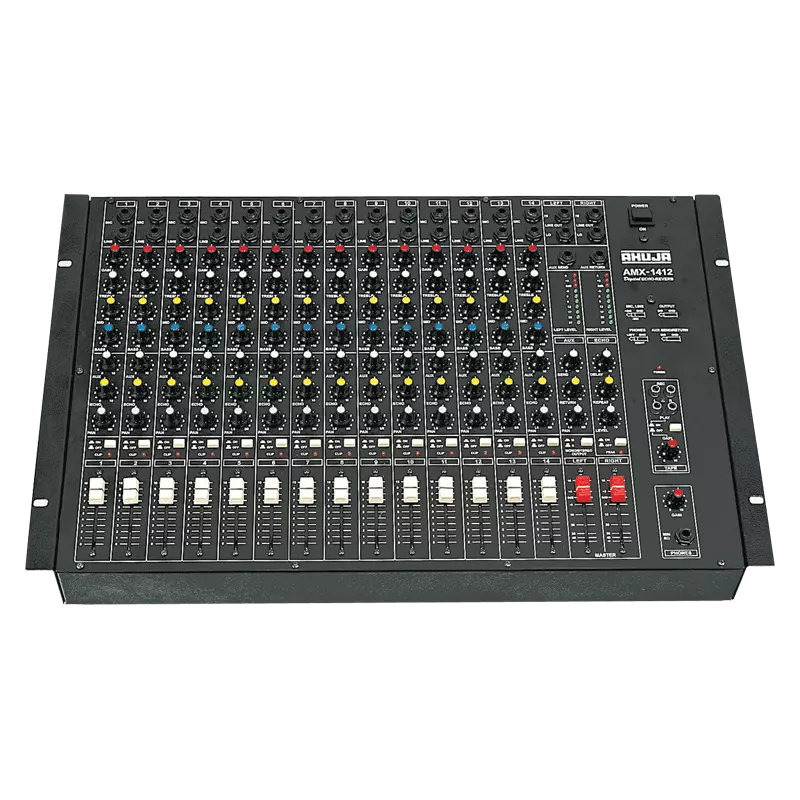

Mixer Ahuja AMX- 1412
Ahuja AMX- 1412
PA Audio Mixing Consoles - Stereo
14 Channel
₹20,600.00
Share :
Product Details
AC & 24V DC Operation
- Input Channels : Each Channel has separate 1/4” balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals.
- AUX Control : This controls the level of the channel in the final mix to Aux Send output.
- AUX Send & AUX Return : These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit.
- MONO/STEREO Output : Mono output is available from either Left & Right output jacks when the switch is in ‘Mono’ position.
- Each channel has GAIN, BASS, MID, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
- Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
Specifications
all
- Power Requirement:AC: 220-240V 50/60Hz | DC: 24v (2×12V Car Battery)
- MIC INPUT Impedance/Gain:2kΩ/62dB
- LINE INPUT Impedance/Gain:20kΩ Balanced/42dB | 10kΩ Unbalanced/42dB
- Frequency Response:30Hz - 20kHz (+0 | -1dB)
- SIGNAL TO NOISE RATIO:> 70dB (0dBm | 0.775V)
- Distortion:< 0.08%
- Tone Controls:Bass : ±12dB at 100Hz | Mid : ±12dB at 2kHz | Treble : ± 12dB at 10kHz
- Echo Reverb System:Digital Signal Processing
- Dimensions:W633 × H93 × D420 mm
- Weight:9.4kg
OUTPUT
- Line Output LO:-10dBm/+2dBm (200mV/1V)
- Line Output HI:0dBm/+17dBm (775mV/5.5V)
