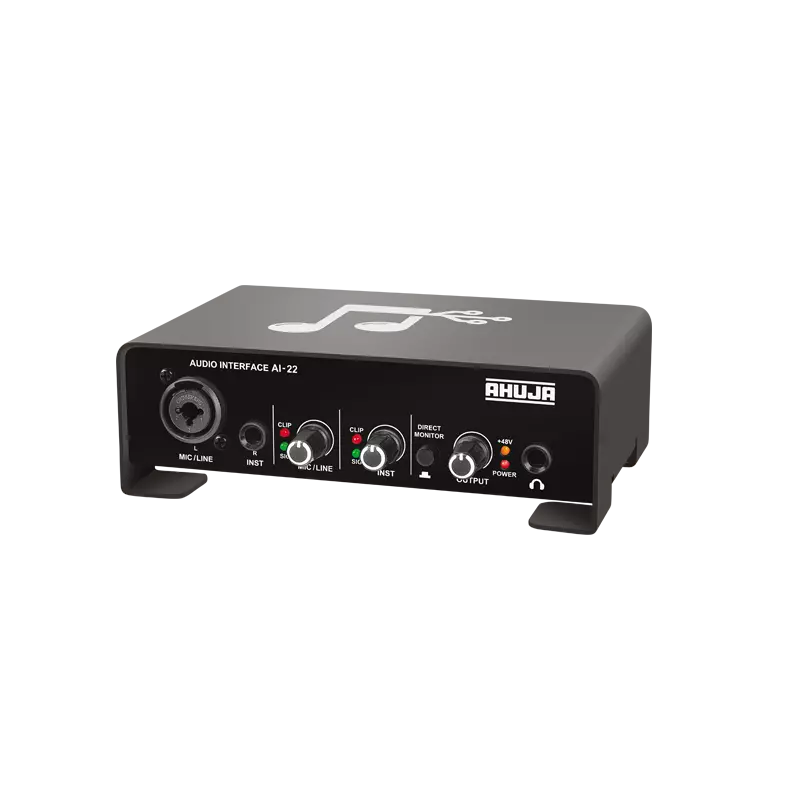

Mixer Ahuja AI-22
Ahuja AI-22
PA EFFECT PROCESSORS
2 x 2 USB Audio Interface
₹5,050.00
Share :
Product Details
- Studio Quality(16Bit/48kHz) Digital Recording.
- Features 2 inputs (Mic/Line & Instrument Level) and 2 outputs.
- Extreme low-Latency digital streaming.
- Switchable Phantom power.
- Supports Windows/Android & Mac iOS.
- Compatible with popular DAW software.
- USB 2.0 Bus-powered.
- Compact durable Aluminum body.
Specifications
ALL
- Dimensions:W175 × H58 × D123 mm
- Weight:550g approx.
MICROPHONE INPUT / LINE INPUT
- Type:Combo XLR Female / 6.3mm (¼") TRS balanced
- Frequency Response (±1.0dB):30Hz to 20kHz
- S/N Ratio (1kHz @ +0dBu Output):> ; 55 dB
- Input Impedance (Balanced):2.2kΩ / 18kΩ
- THD+N (1kHz @ +0dBu Output):£ 0.5%
- Input Level (0dBu Gain, 1kHz):3mV (±1mV) / 35mV (±2mV)
- Phantom Power (±2 VDC):+48 VDC ( at XLR female only)
INSTRUMENT INPUT
- Type:1 x 6.3mm (¼") female| unbalanced
- Input Impedance:1MΩ
- Frequency Response (±1dB):20Hz to 20kHz
- Input Level (0dBu Gain, 1kHz):285mV (±10mV)
OUTPUT L & R
- Type:2 x 6.3mm (¼") Female| Unbalanced
- Maximum Output (±20mV):775mV
HEADPHONE OUTPUT
- Type:6.3mm (¼") active stereo
- Maximum Output (±20mV):300mV/ch. @ 8Ω Load
