Mixer Ahuja ACX-202

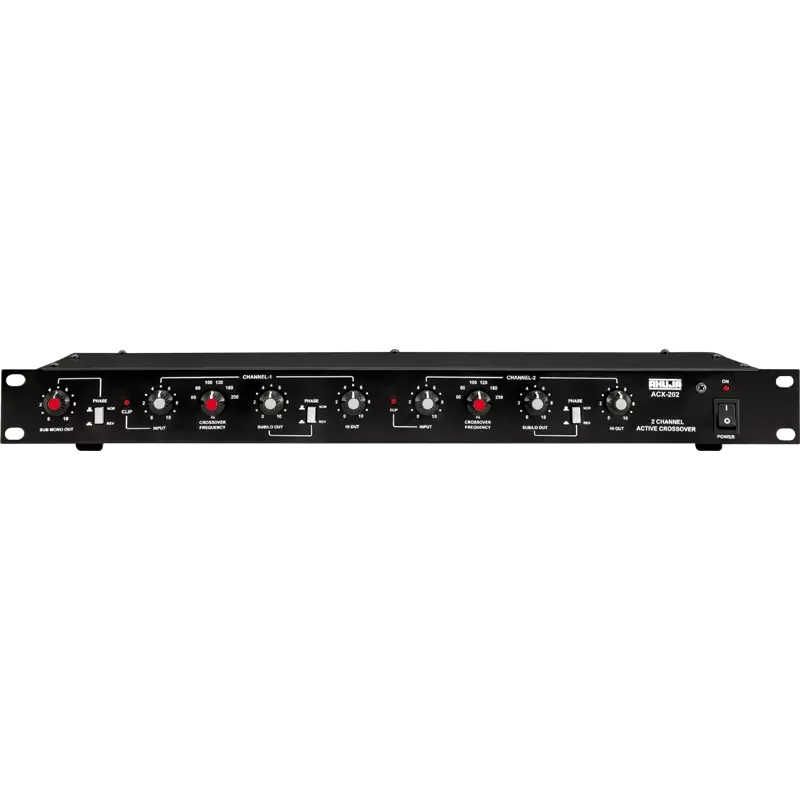

Ahuja ACX-202
PA EFFECT PROCESSORS
Active Crossover
₹7,800.00
Share :
Product Details
- A highly reliable, high performance 2 channel active crossover for use with the best cabinet speakers and subwoofers. Apart from top speakers in stereo mode, ACX-202 allows subwoofers to be connected in either stereo or mono mode.
- Full Stereo mode with Dual High & Low frequency outputs. Six selectable crossover frequencies. Extra sharp 24db / octave filter for very clear separation of frequency bands.
- Separate output for connecting subwoofer in mono mode, with 2 selectable crossover frequencies & 24db / octave filter.
- Separate input level controls for each channel, with LED indicator for clipping level.
- Phase Reversal Facility for Lo Outputs.
- XLR as well as TRS connectors for balanced inputs & outputs.
Specifications
ALL
- Input Sensitivity:1V/20KW
- Low, High Out Filter Slope:24dB/Oct
- THD:<0.01%
- Crossover Frequencies:For Stereo Mode: 60Hz | 80Hz | 100Hz | 120Hz | 180Hz | 250Hz / For Sub MONO Mode: 80Hz | 120Hz
- Frequency Range:20Hz to 20kHz
- Signal to Noise Ratio:85dB
- Indications:Power ON LED | Clip LED
- Power Supply:AC: 240V 50Hz
- Protection:AC: Fuse 1Amp. (T 1A L)
- Dimensions:W483 × H52 × D231 mm
- Weight:2.85kg approx.
