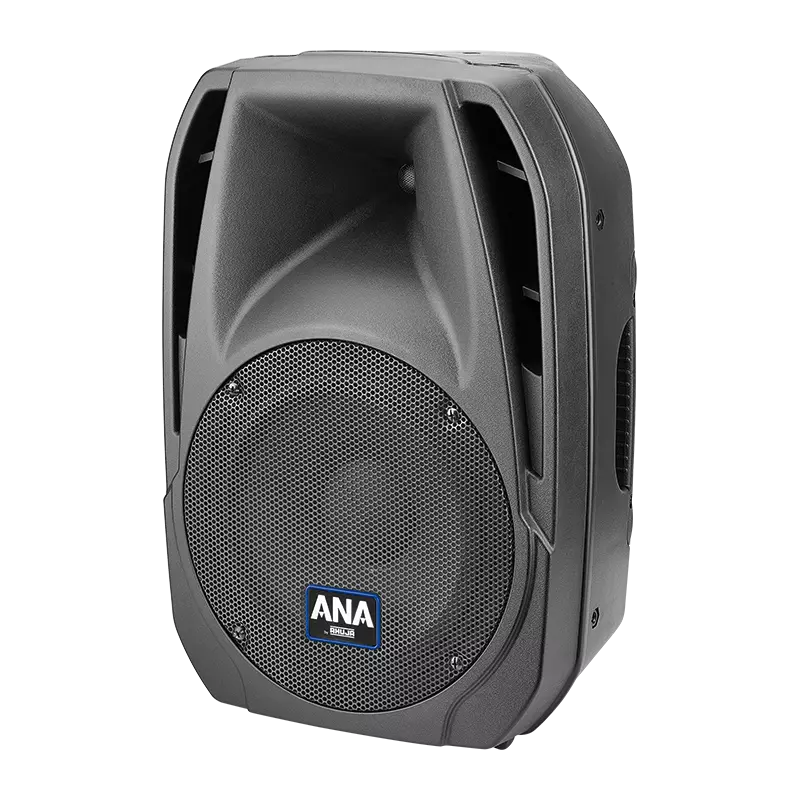

Portable PA Ahuja ABA-5000
Ahuja ABA-5000
PA Active Speakers
400 WATTS
Bi-Amp PA Active Loudspeakers
₹26,460.00
Share :
Product Details
- ABA-5000 has a built-in Bi-Amplifier for woofer and HF driver separately, for use in a wide variety of Professional and PA Programmes. Feature packed ABA-5000 is an ideal equipment for applications such as in Professional Music and Vocal Performances, Touring PA, Mini-Theatres, Pubs and Bars, Religious Gatherings, Stage Monitors etc.
- 1xBalanced Mic/Line Input selectable through a push switch.
- 1xLine Input can be used for connecting balanced MONO signal through jack or unbalanced STEREO signal source through dual RCA.
- Switchable balanced output either as a Loop through output of Input-1 or a mix output of Input-1 and 2.
- Balanced output to link another ABA-5000 or for recording on a computer, record player.
- 2-Way Speaker System: 38.1cm (15”) LF Woofer (Ø7.62cm (3.0”) Voice Coil) + Dynamic Horn (Ø4.44cm (1.75”) Voice Coil).
- Moulded Cabinet Bi-Amp PA Acitve Loudspeaker.
Specifications
PA Active Speakers
- Input Channels:INPUT-1: MIC 20mV/3kΩ balanced | LINE: 775mV/10kΩ balanced | INPUT-2: LINE (Jack) 250mV/20kΩ balanced | RCA: 250mV (L&R)/10kΩ
- Power Output (Bi-Amp):LF: 350W RMS at 1% THD Class H | HF: 50W RMS at 1% THD Class AB
- Output Regulation:≤ 0.5dB | no load to full load at 1kHz
- Signal to Noise Ratio:60dB
- Tone Controls:Bass: ±5dB at 100Hz | Treble: ±5dB at 10kHz
- Output:(a) Loop through (INPUT-1): 20mV or 775mV (b) Mixed Output (1+2): 775mV/1kΩ
- Crossover Frequency:2.5kHz | Filter Slope 24dB per octave
- Protections:AC: Fuse 1x5A (T 5A L) DC: Fuse 2x8A (T 8A L)
- Power Supply:AC: 220-240V 50/60Hz
- Frequency Response:50-20000Hz ±3dB
- Weight:28.10kg
- Dimensions:W450 x H690 x D360 mm
